Once you know the year and month of manufacture then proceed to download your Breakdown pdf. Jun 14 2021 - Tire Changer Schematic Wiring.

Corghi Tire Changer Electric Motor Switch 424796 435363

THIS IS A CHEAPER POSSIBILITY THAN HAVING TO REPLACE THE MOTOR AND IS THE FIRST PLACE WE START WHEN FIXING OUR CUSTOMERS TIRE MACHINES IN THE FIELD.

. Our experienced technicians are available if you have any questions. This switch was found in Coats Tire Changer models. Tire Changer Wiring Diagram W 893 W 894x W.

Follow all the instructions carefully and your tyre changer will assist you in your work and give lasting and efficient. Corghi a2010 tire changer parts manual on cdrom italian. We also offer demos in our own showroom located 12 miles north of the GW Bridge.

2019 2019ti 9212 9212ti 9218 9218TI 9220 9220ti A2000. If you need parts for this machine please call our technicians at 800-822-6720 so we can try to help. Thats why Corghi was awarded ISO 9001 Quality Certification industrys most coveted award.

877-851-2737 or 201-784-8848 or click on this link PDFs of Corghi Parts. Run-flat certified by all major tire manufacturers. The third letter is the month A January etc The older machines have 3 or 4 letters indicating the year and month.

We sale and service all makes including Corghi Coats Ranger Triumph Titan Rhino and more. Bring us your toughest tire and let us show you how we can mount and balance even the seemingly impossible. CORGHI OEM PART 424796 900424796 435363 900435363 421523 900421523.

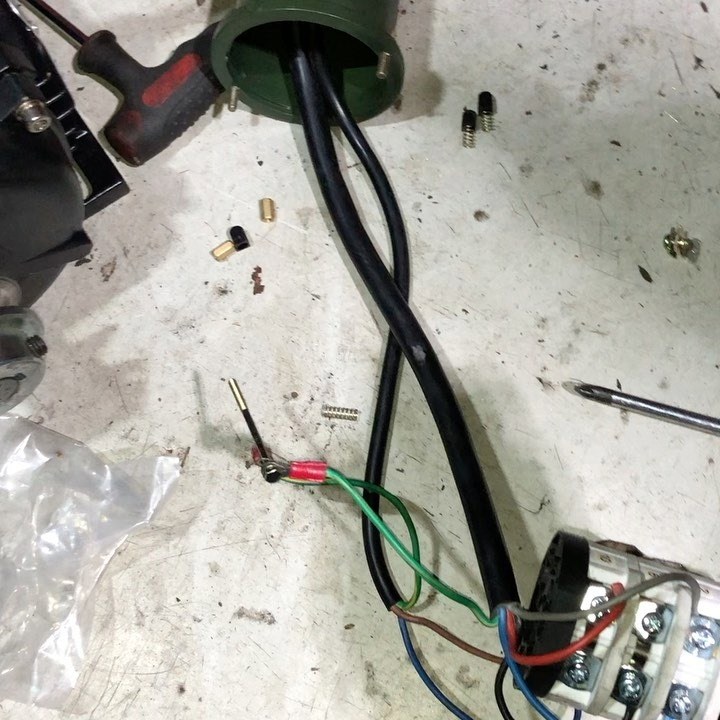

Hi guys I email a business that sell same tire changer ask them about wiring for 110v and sent a diagram of switch I tryed it the motor work with switch in forward or reverse and didnt change rotation. Spare parts list Release. 01 4 26 CHAPTER 1 INTRODUCTION 11 INTRODUCTION Thank you for purchasing a product from the line of Automatic tire changers.

Tire Changer Schematic Wiring. This Aftermarket Part Replaces Coats 8182958 182958. CORGHI TIRE MACHINE MANUAL DOWNLOAD CORGHI TIRE MACHINE MANUAL READ ONLINE corghi a9824ti manual corghi 2030tire changer wiring diagram corghi mts 40-20 corghi a2024ti parts corghi heavy duty tire changer corghi service corghi tire machine reviews.

Tire Changer Wiring Diagram W-893 W-894X W-894XS W-898X W-898XS W-M807 W-M806 4 8 12 2 6 10 1 5 9 3 7 11 Motor Incoming Blue or Black 110V Ground Blue U2 Yellow U1 Black Z2 Red Z1 Incoming Brown or White Common Switch Terminals Switch Terminals Clockwise Rotation - Pedal Down. This switch was found in Corghi tire changer models. 40 amp Forward Reverse Tire Changer Switch.

Do you have a Corghi A 2019 Tire Changer that needs a repair. THIS IS A CHEAPER POSSIBILITY THAN HAVING TO REPLACE THE MOTOR AND IS THE FIRST PLACE WE START WHEN FIXING OUR CUSTOMERS TIRE MACHINES IN THE FIELD. Corghi School Virtual Tour The Correggio Corghi School can now be toured in a dynamic and immersive way thanks to an innovative 3D technology that offers an exceptional and highly engaging user experience complete with the possibility for the virtual visitor to view specific videos and download the commercial documentation for each product.

We can even bundle your customized lease. Corghi Coats Rim Clamp Forward Reverse Switch Wire Diagram. The purpose of this manual is to furnish the owner and operator of this Corghi machine with a set of practical and safe instructions for the use and maintenance of the A 2020 A2025 A2030 A 2015 and A 2005 tyre changers.

Fits Corghi AC Motors excludes A9820TI A9824TI. The machine has been manufactured in accordance with. 63 Oak Street Norwood NJ 07648 877-851-2737 Email us at.

9010 9010e 9024 e-pax 9024e pax 9024 9024e. Browse our Parts Breakdown PDF to find the right equipment that you need to complete the job. How to connect motor switch.

Spare part Machine name. 5-102742 Corghi 3-PHASE REVERSER SWITCH AC MOTOR Replaces 900421523 900435363 and 5-102741 - Works with EQ RP11-5-400682 by Corghi 5-102742. 9 ELECTRIC AND PNEUMATIC DIAGRAM 24.

10 del 032005 31032005. Corghi Tire Machine Wiring Diagram. Wiring Diagram 22 Coa.

To find your part for your machine. Fits Coats 50-Series 70-Series 9010 9024 APX. Coats 70X Tire changer with Robo-Arm AT NYTECH Supply We are your one-stop source for Tire Repairs Chemicals Tire Service Equipment Brake Lathes Tire Pressure Monitoring Tools and Equipment Car and Truck Lifts Air Impact Tools Refrigerant Recovery Recycling Equipment.

Corghi 5-102742 REVERSER SWITCH AC MOTOR WAB943 Replaces 900421523 900435363 and 5-102741 - Works with EQ RP11-5-400682 by Corghi 5-102742. C means Corghi the second letter is the year month A 2004 B 2005 C 2006 etc. So 9-5-1 are joined together 11-7-3 are joined together and 6-8 10-12 L -5 N-11 there something not right he said same wiring as 220v.
